How to Create an Effective Plot Plan

Posted on September 29, 2025September 24, 2025 by Jason Somers

A plot plan is not just a tool for construction or landscaping; it’s a comprehensive map that serves multiple purposes. It helps in legal documentation, ensuring compliance with zoning laws and regulations. With a detailed plot plan, you can avoid potential legal disputes and seamlessly progress with your property-related projects. This guide aims to equip you with the knowledge to create a plot plan that is both precise and functional, paving the way for successful project execution.

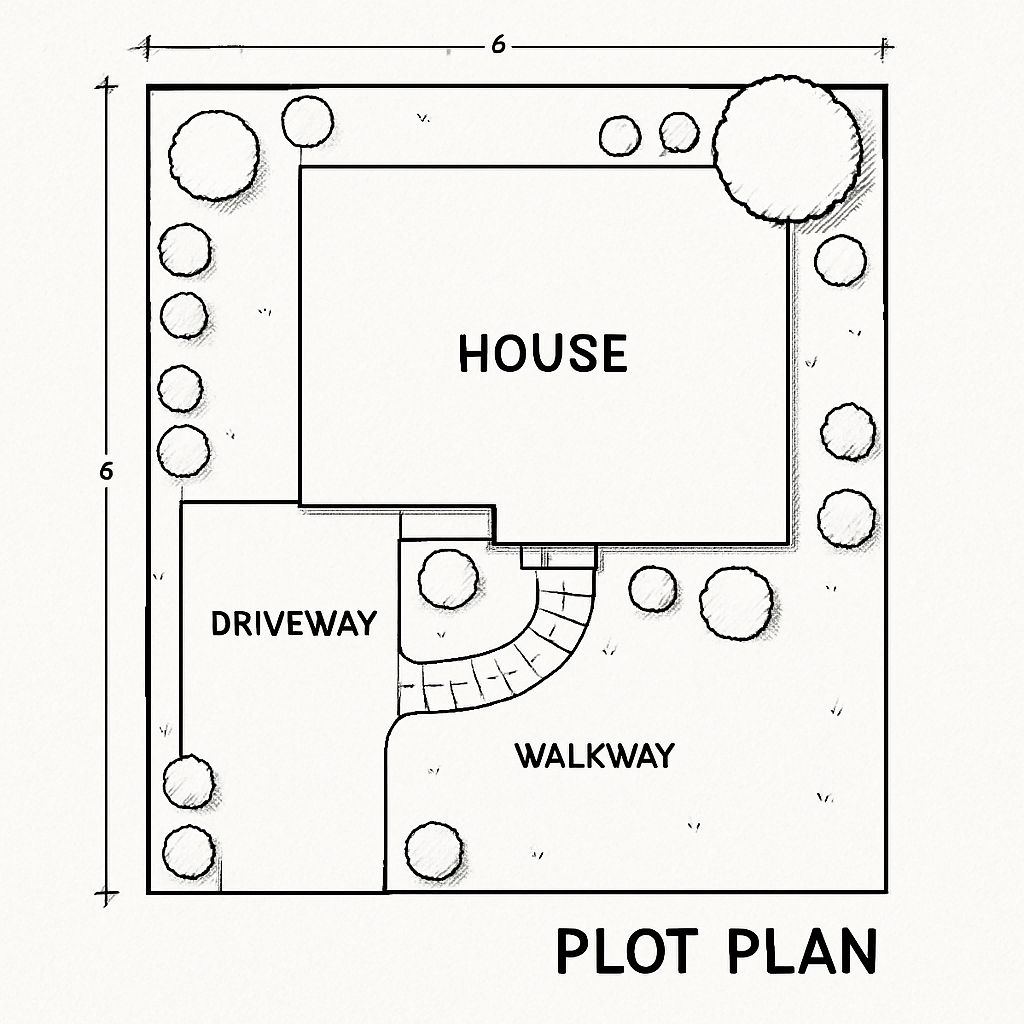

A plot plan, also known as a site plan or land use plan, is a detailed map of a property. It outlines the boundaries, structures, and significant features of the land. Plot plans are used for various purposes, including construction, landscaping, and legal documentation. They serve as a visual representation of the property, allowing you to assess its current state and plan future developments efficiently.

A well-crafted plot plan includes more than just the physical layout; it integrates critical information such as zoning details, topographic data, and utility locations. This comprehensive approach ensures that all aspects of property development are considered, minimizing potential issues during implementation. By providing a clear picture of the land, plot plans facilitate effective communication among stakeholders, such as architects, builders, and landscapers.

Why Do You Need a Plot Plan?

Plot plans serve multiple purposes:

1. Construction and Renovation: Before you can start any construction or renovation project, you need a plot plan to understand the layout and constraints of your property. It helps architects and builders visualize the project within the context of the site, ensuring that the design is both functional and compliant with local regulations. Moreover, a plot plan can identify potential challenges, such as uneven terrain or proximity to utility lines, allowing for adjustments before construction begins.
2. Property Sale: When selling property, a plot plan provides potential buyers with a clear picture of the land’s features and boundaries. It serves as a critical tool in the negotiation process, offering transparency and building trust with prospective buyers. A detailed plot plan can highlight the unique features of your property, such as mature trees or a scenic view, potentially increasing its market value.
3. Legal Documentation: Plot plans are often required for legal purposes, such as zoning permits and property disputes. They provide an official record of the property’s layout and features, which can be crucial in resolving boundary disputes or obtaining necessary permits for development. Having a precise plot plan can save time and reduce costs associated with legal challenges.
4. Landscaping: For landscaping projects, a plot plan helps in planning the placement of plants, trees, and other features. It allows landscapers to design a layout that complements the existing structures and natural elements of the property. By understanding the topography and soil conditions, you can choose the right plants and materials, ensuring the longevity and sustainability of your landscaping efforts.

How to Get a Plot Plan for Your Property

There are several ways to obtain a plot plan for your property. Here are the most common methods:

1. Contact Your Local Government

Most local governments keep records of plot plans for properties within their jurisdiction. You can visit your local city or county office to request a copy of your plot plan. This is often the quickest and most reliable way to get an accurate plot plan. Additionally, government records typically include important zoning information and any restrictions that may apply to your property, providing a comprehensive overview of your land’s legal status.

Local government offices may also offer assistance in interpreting plot plans and understanding the specific zoning laws applicable to your property. This support can be invaluable, particularly if you are unfamiliar with the technical aspects of land use planning. By leveraging these resources, you can ensure that your plot plan aligns with municipal regulations and requirements.

2. Hire a Professional Surveyor

If your local government does not have a plot plan on record, or if you need an updated version, consider hiring a professional surveyor. Surveyors have the expertise and equipment to create detailed and accurate plot plans. While this option may be more expensive, it ensures that you have the most precise information for your project. Professional surveyors can also provide insights into potential issues, such as encroachments or easements, that may affect your property development plans.

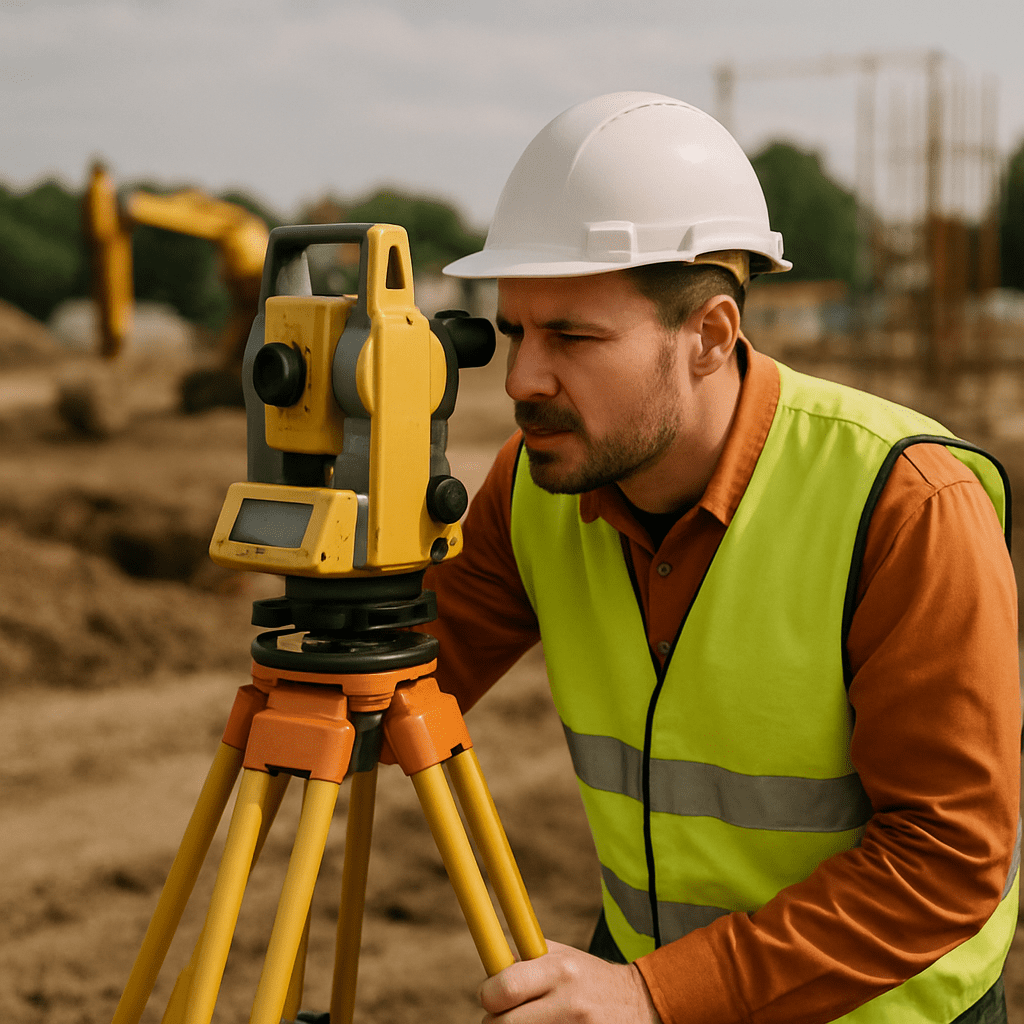

Engaging a surveyor can be particularly beneficial for complex projects or large properties where precision is critical. Surveyors use advanced tools like GPS and laser scanning to capture precise measurements, ensuring that your plot plan is both comprehensive and accurate. Their expertise can help prevent costly mistakes during construction and ensure compliance with all relevant regulations.

3. Use Online Resources

Several online services offer plot plan creation tools. These platforms often use satellite imagery and public data to generate plot plans. While these tools can be convenient, the accuracy may vary, so it’s essential to verify the information if precision is critical for your project. These services are typically more cost-effective and can provide a quick overview of your property layout, making them a useful starting point for smaller projects or preliminary planning.

However, it’s important to recognize the limitations of online resources. Satellite imagery may not capture recent changes to your property, such as new structures or altered landscapes. Additionally, public data sources may not include all necessary details, such as underground utilities or private easements. Therefore, while online tools can be a helpful initial resource, they should be supplemented with more reliable data sources for critical projects.

Elements of an Effective Plot Plan

To ensure your plot plan is effective, it should include the following elements:

Property Boundaries

Clearly define the boundaries of your property. This information is essential for construction, legal matters, and understanding the extent of your land. Accurate boundary delineation helps prevent disputes with neighbors and ensures that all development stays within your property lines. Including boundary dimensions and markers in your plot plan provides a clear reference for future projects or transactions.

Understanding your property’s boundaries also enables you to make informed decisions about space utilization. Whether you’re planning to expand your home, build a fence, or plant a garden, knowing the exact limits of your land is crucial for successful implementation. This foundational element of your plot plan ensures that all subsequent features and structures are placed appropriately.

Structures and Features

Include all existing structures, such as houses, garages, and sheds. Additionally, note any significant features like driveways, fences, and retaining walls. These elements provide a comprehensive view of your property’s current layout, helping you identify areas for potential development or renovation. By documenting existing structures, you can evaluate their condition and consider any necessary repairs or upgrades.

Accurate representation of structures and features in your plot plan also aids in planning future additions. For instance, understanding the orientation and spacing of existing buildings can influence the design and placement of new structures, ensuring they complement the overall layout. Additionally, recognizing the location of features like driveways and fences can inform decisions about property access and security.

Topography

Topography refers to the natural features and elevations of the land. Including topographic information helps in planning construction and landscaping projects, as it affects drainage and structural stability. By understanding the contours and slopes of your property, you can design projects that work with the land rather than against it, reducing the risk of erosion or flooding.

Topographic details are particularly important for properties with varied terrain. They provide critical insights into how water flows across the land, which can influence the placement of buildings, gardens, and drainage systems. By incorporating topographic data into your plot plan, you can create designs that maximize the aesthetic and functional potential of your property.

Utilities and Easements

Identify the location of utilities such as water, electricity, and gas lines. Also, note any easements, which are areas where others have a legal right to use your land for specific purposes, like utility maintenance. Understanding the location of utilities is crucial for avoiding damage during construction and ensuring that new structures do not interfere with essential services.

Easements can significantly impact your property rights and development plans. Including them in your plot plan ensures that you are aware of any restrictions or obligations associated with your land. This information is vital for both current and future projects, helping you avoid legal complications and maintain good relationships with utility providers and neighbors.

Zoning and Setbacks

Include information about zoning regulations and setbacks, which are the required distances between structures and property lines. This information is crucial for compliance with local building codes. Zoning laws dictate how your property can be used, influencing decisions about building size, placement, and purpose. Understanding these regulations is essential for obtaining necessary permits and avoiding costly fines or delays.

Setbacks are particularly important for ensuring that new structures are positioned correctly on your land. They help maintain adequate space between buildings and property lines, contributing to neighborhood aesthetics and safety. By incorporating zoning and setback information into your plot plan, you ensure that your development aligns with community standards and legal requirements.

Steps to Create a Plot Plan

Follow these steps to create a comprehensive plot plan:

Step 1: Gather Information

Collect all relevant documents, including previous plot plans, property deeds, and zoning regulations. This information serves as the foundation for your plot plan. Having a complete set of documents ensures that you have all the necessary details about your property, including historical changes, legal descriptions, and any existing restrictions.

In addition to official documents, consider gathering informal sources of information, such as photographs or personal notes from previous projects. These can provide valuable context and help you understand how your property has evolved over time. By starting with a thorough information-gathering process, you lay the groundwork for an accurate and effective plot plan.

Step 2: Measure Your Property

Accurate measurements are crucial for a precise plot plan. Use measuring tools like tape measures or laser rangefinders to determine property boundaries and the location of structures. These tools provide the precision needed to ensure that your plot plan accurately reflects the dimensions and layout of your property.

When measuring, take note of any irregularities or unique features that may impact your plot plan. For example, sloped areas or natural obstructions should be documented and considered in your design. By taking detailed and accurate measurements, you ensure that your plot plan is reliable and suitable for guiding future developments.

Step 3: Sketch the Layout

Begin by sketching a rough outline of your property, marking boundaries, structures, and significant features. Use graph paper to maintain scale and proportion. This initial sketch provides a visual framework for your plot plan, allowing you to experiment with different layouts and design ideas.

While sketching, consider how different elements of your property interact with one another. For example, think about how a new structure might impact views or sunlight exposure for existing buildings. By exploring these relationships in your sketch, you can develop a plot plan that is both functional and aesthetically pleasing.

Step 4: Add Details

Incorporate topographic information, utilities, easements, zoning regulations, and setbacks into your sketch. Ensure that all elements are clearly labeled and easy to understand. This step involves synthesizing the data you’ve gathered into a coherent representation of your property, ensuring that nothing important is overlooked.

Adding details to your sketch transforms it from a simple drawing into a comprehensive plot plan. It requires careful attention to accuracy and clarity, as these details will guide future development and decision-making. By including all relevant information, you create a plot plan that serves as a reliable reference for both current and future projects.

Step 5: Create a Final Draft

Using your sketch as a guide, create a clean, final draft of your plot plan. You can use drafting software or enlist the help of a professional if needed. Ensure the final draft is clear, accurate, and includes all necessary elements. A well-executed final draft provides a polished and professional representation of your property, suitable for use in official documentation and planning.

Consider sharing your final draft with stakeholders, such as architects or contractors, to gather feedback and ensure that it meets all project requirements. This collaborative approach can help identify any oversights and ensure that your plot plan is comprehensive and effective. By taking the time to create a detailed and accurate final draft, you set the stage for successful property development.

Tips for an Accurate Plot Plan

• Double-Check Measurements: Always verify measurements for accuracy, especially if you’re planning construction or legal activities. Accurate measurements are the backbone of a reliable plot plan, ensuring that all elements are correctly positioned and proportioned.
• Keep It Updated: Regularly update your plot plan to reflect changes to the property, such as new structures or altered boundaries. An up-to-date plot plan provides a current view of your property, supporting informed decision-making and reducing the risk of errors.
• Consult Professionals: When in doubt, seek the expertise of professionals like surveyors or architects to ensure your plot plan is precise and compliant with local regulations. Professional guidance can provide valuable insights and help navigate complex zoning or legal issues.

Conclusion

Creating an effective plot plan is a fundamental step in managing and optimizing your property. Whether you’re planning a new build, landscaping, or resolving a property dispute, a detailed plot plan provides clarity and direction. By following the steps outlined in this guide, you’ll be well-equipped to create a plot plan that meets your needs and ensures the success of your project. With the right approach, a plot plan becomes an invaluable tool for enhancing the value and functionality of your property.

A well-executed plot plan not only supports current projects but also serves as a foundation for future development. By investing time and effort into creating a comprehensive plot plan, you empower yourself to make informed decisions and maximize the potential of your property. As you embark on your property development journey, let your plot plan guide you towards success and satisfaction.
