LA Setback Requirements by Zone: A Quick-Reference Guide

Posted on May 18, 2026May 12, 2026 by Jason Somers

If you are planning to build a new home, remodel an existing space, or add an Accessory Dwelling Unit (ADU) in the greater LA area, you already know that the permitting process can feel like navigating a maze. One of the most critical elements you must fully understand before finalizing any blueprints is the local setback regulations. Setbacks dictate exactly where on your property you are legally allowed to place a structure. Failing to account for these spatial boundaries can result in expensive delays, rejected architectural plans, or even mandatory demolitions of unpermitted work. Whether you are working strictly within city limits or looking up broader la county setback requirements for an unincorporated area, understanding these physical boundaries is non-negotiable. To help you cut through the red tape and streamline your planning phase, we have put together this comprehensive Los Angeles setback requirements by zone (quick-reference guide).

Understanding the Basics: What Are Setbacks?

At their core, setback requirements are the minimum legally mandated distances required between a building or structure and the property lines. These rules exist to ensure fire safety, maintain privacy between neighbors, protect environmental assets, and preserve neighborhood aesthetics. The specific la setback requirements governing your project are outlined comprehensively in the Los Angeles Municipal Code Chapter 1 zoning ordinances. Before we dive into the zones, it is important to distinguish between two often confused planning concepts: lot coverage limits vs setback requirements.

• Setback requirements dictate the boundary lines within which you can build, effectively creating an invisible “buildable box” on your lot.
• Lot coverage limits dictate the maximum percentage of your total land area that can be covered by structures.

Even if a building fits perfectly within the required setbacks, it may still be rejected if it exceeds the maximum allowable lot coverage. You must comply with both rules simultaneously.

Step 1: Identify Your Property Zoning

You cannot know your required setbacks if you do not know your exact zoning designation. The easiest way to determine this in the City of Los Angeles is by utilizing the city’s online geographic information system. Following a basic ZIMAS property zoning search guide can save you hours of confusion. Simply navigate to the Zone Information and Map Access System (ZIMAS) online portal and enter your property address. The system will generate a highly detailed report showing your specific zoning (e.g., R1, R2, RE), your total lot size, and any special overlays—such as Historic Preservation Overlay Zones (HPOZ) or hillside designations—that apply directly to your address.

Quick-Reference Guide to Residential Zoning Setbacks

Let’s break down the standard LADBS residential yard requirements. Keep in mind that the Los Angeles Department of Building and Safety (LADBS) strictly enforces these rules, and specific tract conditions or overlays can occasionally alter these baselines.

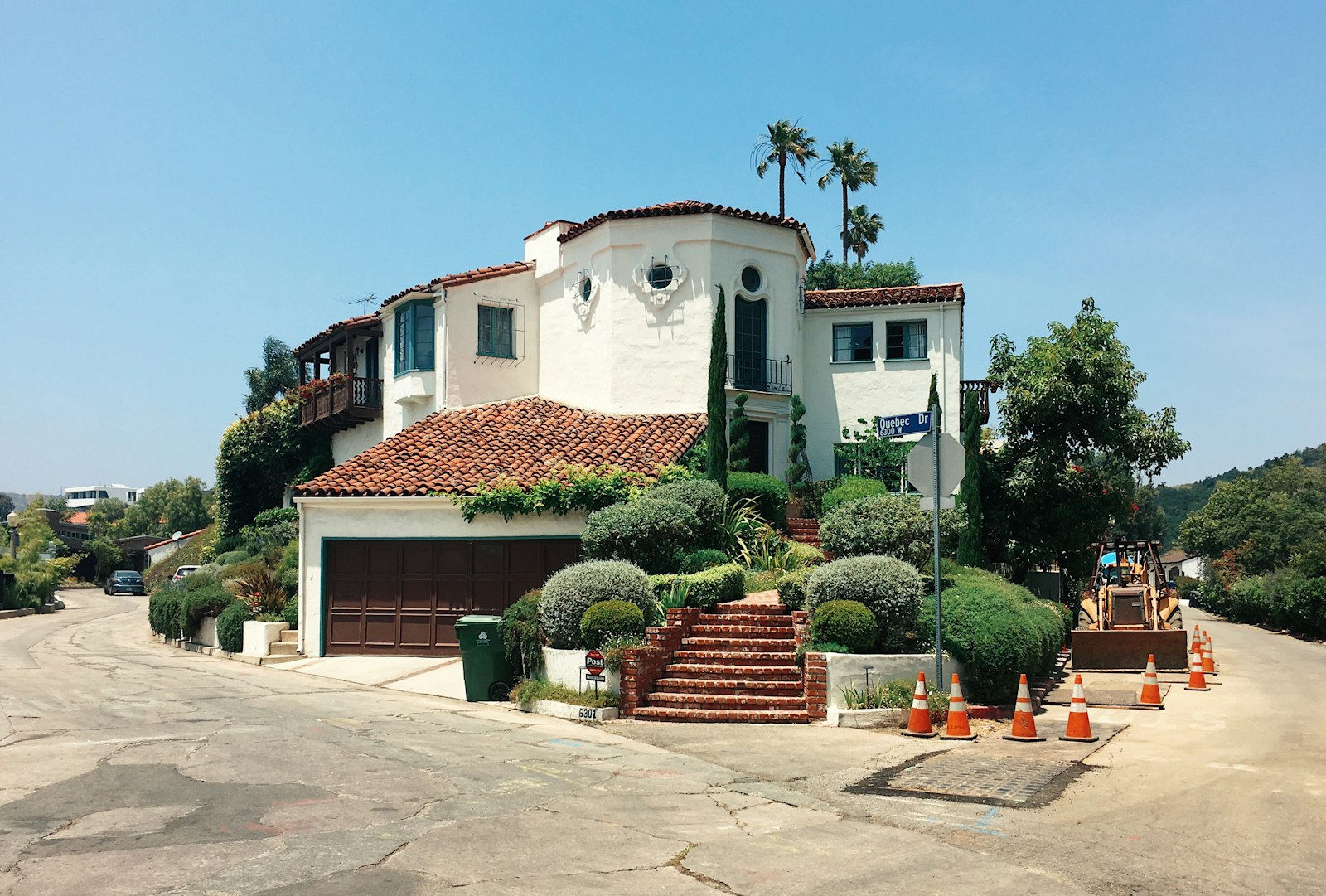

Single-Family Residential (R1 Zone)

The R1 zone is the most common single-family residential designation in Los Angeles. Los Angeles R1 zone building setbacks generally follow these baseline measurements:

• Front Yard: The baseline front yard setback is typically 20 feet. However, knowing exactly how to calculate front yard setbacks in LA often involves the “prevailing setback” rule. If the existing houses on your block are closer to or further from the street than 20 feet, your required setback is calculated based on the average front yard depth of your immediate neighbors.
• Side Yard: For a standard R1 lot, the side yard setback is usually 5 feet for a one-story home. This minimum requirement increases if the building exceeds a certain height (typically adding 1 foot of setback for every 10 feet of building height above 18 feet).
• Rear Yard: The standard rear yard setback is 15 feet for a single-family home on an R1 lot.

Multi-Family Residential (R2 Zones)

If you are dealing with a duplex or a two-family dwelling lot, you might be asking: what are the setback rules for R2 multi-family zones? While similar to R1, the density changes the dynamic:

• Front Yard: Generally 20 feet, or governed by the prevailing block setback.
• Side Yard: The minimum side yard is typically 5 feet, but it increases by 1 foot for each story above the second story. Multi-story developments require more breathing room.
• Rear Yard: The minimum rear yard is usually 15 feet.

Hillside Properties

Building in the Hollywood Hills, Bel Air, or the Santa Monica Mountains introduces entirely new complexities. Setback requirements for hillside properties Los Angeles are heavily influenced by the Baseline Hillside Ordinance (BHO). Because of heightened fire safety concerns, potential soil instability, and narrow winding roads, hillside setbacks are much stricter. Front yard setbacks might be modified based on mandatory street widening or dedication requirements, while side and rear setbacks might require additional clearance for massive retaining walls and emergency responder access.

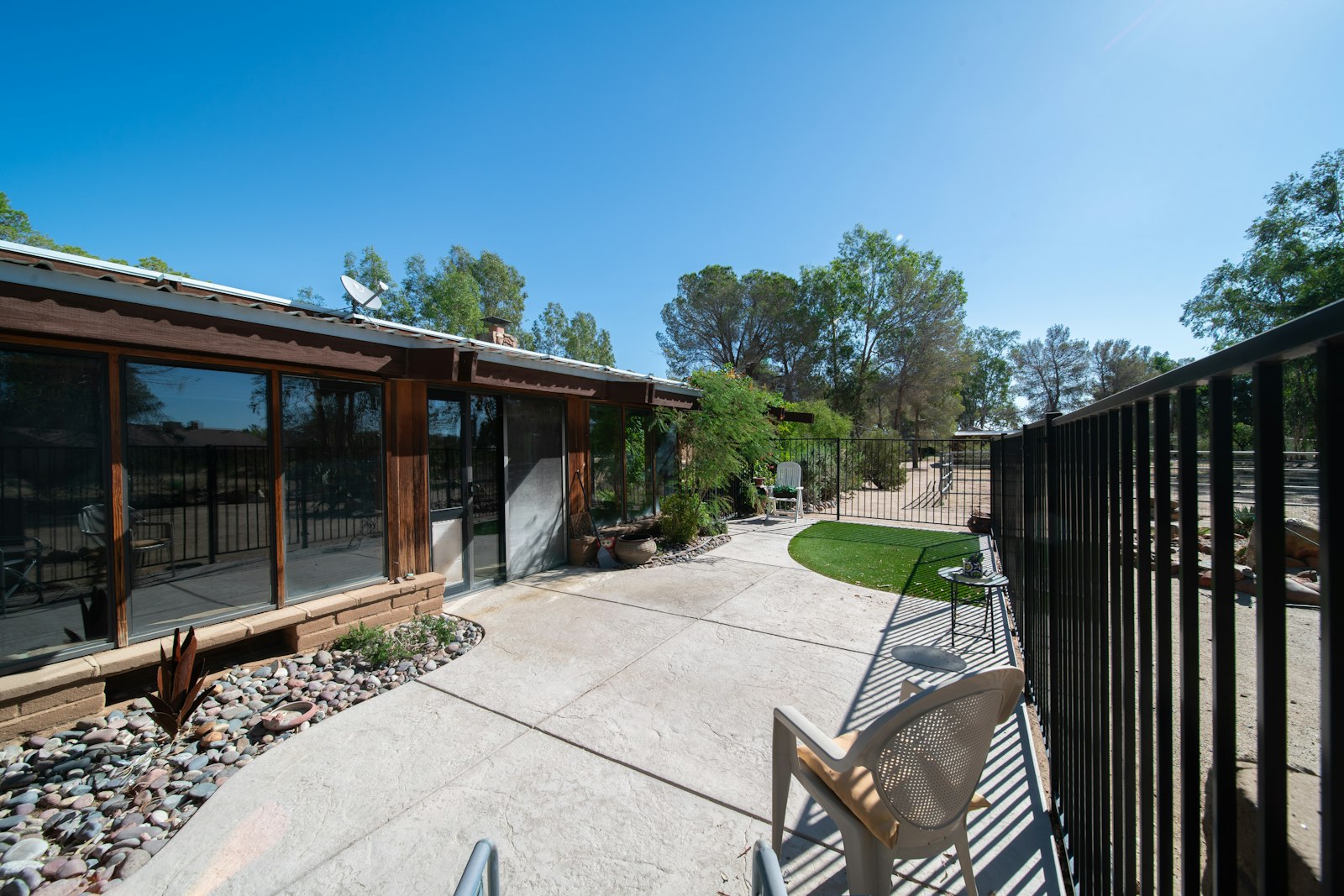

The ADU Revolution: Specific Setback Rules

Accessory Dwelling Units (ADUs) have revolutionized the Los Angeles housing market. Fortunately, to ease the housing crisis, the state of California has mandated highly relaxed rules to encourage their development. This applies heavily to la county adu setback requirements as well as city regulations. When looking at the minimum side yard distance for ADU construction, current state and local laws generally require only a 4-foot setback from the side and rear property lines. This is a massive reduction compared to standard home builds. Understanding the rear yard vs side yard setback rules for ADUs is refreshingly simple: whether it is the back property line or the side fence, a newly constructed, detached ADU only needs 4 feet of breathing room. Even better, if you are converting an existing, legally permitted structure (like an old garage built right on the property line), you generally do not need to provide any additional setback for the converted space. It is legally “grandfathered” into its current footprint.

Nuances, Projections, and Property Boundaries

Standard rules are just the beginning of the story. There are several exceptions to standard setback requirements in Los Angeles that clever homeowners and architects can leverage to maximize space.

Architectural Projections

What if you want to add a bay window, a cantilevered balcony, or an overhanging roof eave? Does that count against your setback? The city code outlines specific permissible projections into required yards. For instance:

• Roof eaves, cornices, and architectural projections can often extend up to 30 inches into a required side yard, provided they do not cross the actual property line.
• Unenclosed porches, stairways, and landing platforms have their own specific allowances for projecting into front yard setbacks, typically up to 6 feet depending on the zone.

Fences and Property Boundaries

Setbacks apply strictly to habitable buildings and solid structures, but fences are treated differently. When building a fence on property line LA regulations stipulate very specific heights based on location to maintain neighborhood character and safety:

• Front Yard Fences: Typically cannot exceed 3.5 feet in height to maintain visibility for drivers and pedestrians.
• Side and Rear Yard Fences: Can usually be built up to 6 or 8 feet high directly on the property line without needing a setback, depending on the specific zone and whether the property sits on a corner lot.

What Happens When You Need to Break the Rules?

Sometimes, a lot is unusually shaped, exceptionally narrow, or an existing historical structure simply doesn’t comply with modern codes. When you cannot stay within the required lines, you have two primary administrative pathways.

Encroachment Permits

If your project requires you to place a structure, retaining wall, fence, or even a specialized driveway element in the public right-of-way (such as extending into the parkway or the city-owned sidewalk area), you cannot rely on zoning exceptions. Instead, you must secure encroachment permits for Los Angeles properties. These are granted by the Department of Public Works. To get one, you must demonstrate that your encroachment will not hinder public safety, block pedestrian pathways, or interfere with underground public utility access.

Zoning Variances

If your project takes place entirely on your private property but simply cannot meet the mandated setbacks due to a steep drop-off, a jagged geometric lot shape, or a protected mature tree, you may need a legal exemption. Filing for a zoning variance in LA is a formal, highly detailed, and often lengthy process. You must officially prove to the Department of City Planning that strictly adhering to the standard setback rules would cause an “unnecessary hardship” based on the unique topography or shape of your lot. Furthermore, you must prove that your proposed alternative design will not negatively impact your neighbors’ light and air, nor alter the essential character of the community. The variance process usually requires public hearings, neighbor notifications, and meticulous architectural justifications.

Final Thoughts

Navigating the web of LA building codes does not have to be a nightmare if you start with the right information. By establishing your exact zone, calculating your prevailing front yard, and keeping minimum distances in mind for standard structures versus ADUs, you can design a project that breezes through the LADBS approval process. Remember, this Los Angeles setback requirements by zone (quick-reference guide) is an excellent starting point, but every lot is unique. Always verify your specific property details through ZIMAS, consult with a licensed local architect or expediter, and ensure your final plans respect the boundaries of your neighborhood before you break ground.
